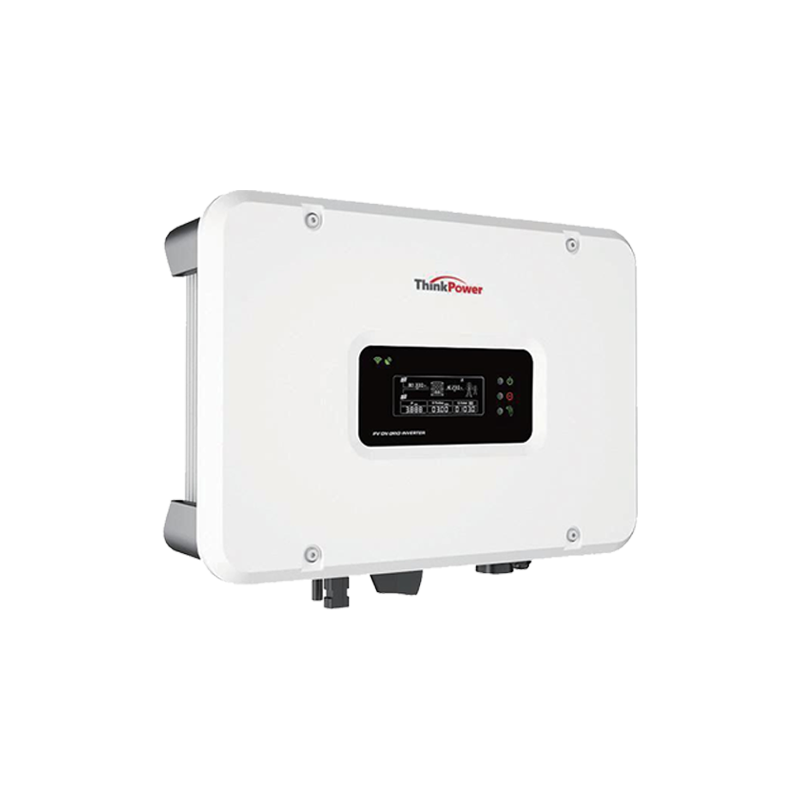

S1000-6000TL Single Phase On Grid Inverter

The S1000-6000TL Single Phase On-Grid Inverter is a reliable and efficient solution for residential and small commercial solar systems. It features a big LCD display for easy monitoring of energy production and system performance. The compact design makes it simple to install, saving space and time.

With great reliability, the inverter ensures long-term performance in various conditions. It also includes a power export limit to ensure compliance with grid regulations. Wi-Fi, GPRS, and LAN communication options provide remote monitoring and control via smartphones or computers.

Built with good safety and quality in mind, it offers protection against overvoltage, overcurrent, and short circuits, making it a secure and dependable choice for solar energy systems.

  • S1000-6000TL Single Phase On Grid Inverter
PREV：TP4-10KTL/TP10-25KTL Three Phase On Grid Inverter   |    NEXT：SNE 1000-2.56/2000-5.12/3000-10.24 Movable Aio Machine

+ Contact us + Catalogue Download

Product Description

Model S1000TL S1500TL S2200TL S3000TL S3600TL S4400TL S5000TL S6000TL
DC Side/lnput Parameters
Max DC power(W) 1500  2250  3300  4500 5400 6600 7500  7500
Max DC voltage (Vdc) 450  450  500  500 500 500 500  500
MinSystem start/Shut down voltage(Vdc) 65/70 75/100 75/100 75/100 75/100 75/100 75/100 75/100
MPPT voltage range(Vdc) 70~450 100~450 100~450 100~450 100~450 100~450 100~450 100~450
Max.input current(A) 13
Number of MPP trackers 1  1  1  1  2 2 2  2
Strings per MPP tracker 1  1  1  1  1 1 1  1
AC Side/Output Parameters
Nominal output power(W) 1000  1500  2200  3000  3600 4000 5000   6000
Maximum output power(W) 1100  1650  2420  3300 3960 4400 5500   6600
Nominal output voltage/range(V) 208,220,230,240/180-270
AC grid frequency/range(Hz) 50Hz,60Hz(auto-selection)/44Hz-55Hz;54Hz-65Hz
Maximum output current(A) 6  8  12  16  16 21 23  26
AC connection(with PE) Single phase
Current distortion(THDi) <1.5% <1.5% <1.5% <1.5% <2.5% <2.5% <2.5%  <2.5%
Power factor ~1%(Adjustable from 0.8 leading to 0.8 lagging)
Efficiency
Maximum conversion efficiency 97.3% 97.3% 97.4% 97.5%  97.8% 97.8% 97.5%  97.6%
European efficiency 97.0% 97.0% 97.1% 97.2%  97.3% 97.3% 97.2%  97.3%
MPPT efficiency 99.9% 99.9% 99.9% 99.9%  99.9% 99.9% 99.9%  99.9%
Safety and Protection
DC reverse-polarity protection  yes
Anti-islanding/Overvoltage protection yes
Short circuit protection yes
Leakage current protection yes
Grid monitoring/Ground fault monitoring yes
DC/AC side SPD(thermally protected)  yes
General Parameters
Dimension(L/W/H)(mm) 370/277/115 434/340/115
Weight(kg) 7 8
Embedded DC Switch Optional
Night power consumption(W) <0.2
Isolation type  Transformerless
Protection degree  IP65 according to IEC60529
Operation temperature(℃) -25℃~+60
Cooling concept Natural convection
Operating Altitude(m) <2000m without power derating
Acoustic noise level(dB) <25
Display Graphic LCD
Communication interface Standard WiFi;RS485(optional)
Warranty 5 years;5/7/10 years for optional
Certificates and Approvals:
CE-(EMC/LVD):EN(IEC) 61000-1/-2/-3/EN(IEC) 62109-1/-2
