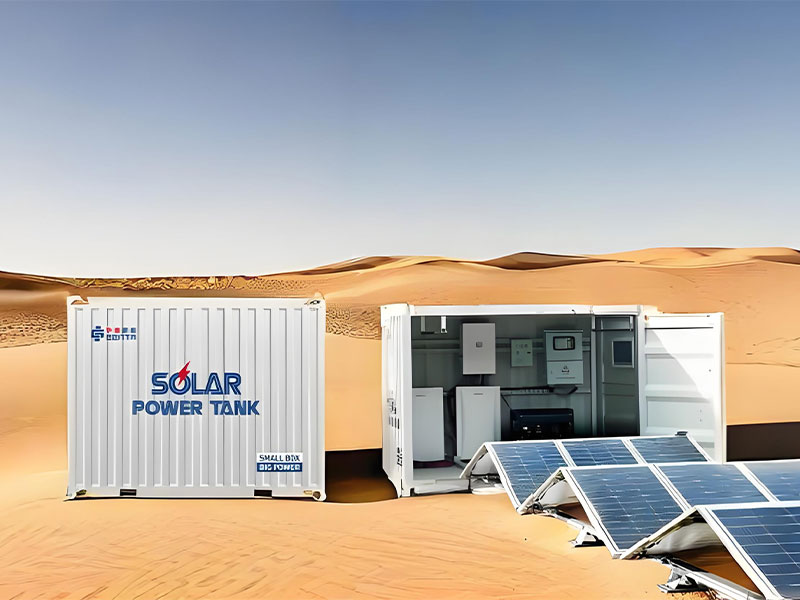

Solar ESS Container (Rail Type)

Total Weight (Tons)：5
Solar Array Capacity (Pmax /kWp)：18.9(18~20)
Type of Solar Module (W)：630x30(550~650)
String Inverter (kW)：12×2 Hybrid
Bracket (Number of Module per Sheet)：1x30
Lithium Battery Storage(kWh)：10.24x2(10~20)
Diesel Generator(KVA)(Optional)：5.5x1
Total Unfolded Footprint (L*W*H/m)：47*2.3(2.9)*0.6(2.2)
Occupied Area of Whole System (m²)：106(47*2.25)
Complete Unfolding Time (mins)：60
Complete Folding Time (mins)：50
Installation Persons：4

Total Weight (Tons)：7.5
Solar Array Capacity (Pmax /kWp)：30.72(30~35)
Type of Solar Module (W)：480x64(480~520)
String Inverter (kW)：12x2 Hybrid
Bracket (Number of Module per Sheet)：2x32
Lithium Battery Storage(kWh)：10.24 x4(10~20)
Diesel Generator(KVA)(Optional)：5.5x1
Total Unfolded Footprint (L*W*H/m)：70*2.4(3.0)*0.8(2.6)
Occupied Area of Whole System (m²)：167(70*2.38)
Complete Unfolding Time (mins)：80
Complete Folding Time (mins)：60
Installation Persons：4

Total Weight (Tons)：13.5
Solar Array Capacity (Pmax /kWp)：60.48(60~70)
Type of Solar Module (W)：480x126(480~520)
String Inverter (kW)：50x1 Hybrid/100 Off Grid
Bracket (Number of Module per Sheet)：3x42
Lithium Battery Storage(kWh)：229x1(215~258)
Diesel Generator(KVA)(Optional)：13.8x1
Total Unfolded Footprint (L*W*H/m)：89*3.6(6.0)*0.8(2.6)
Occupied Area of Whole System (m²)：316(89*3.56)
Complete Unfolding Time (mins)：120
Complete Folding Time (mins)：80
Installation Persons：4

Total Weight (Tons)：16.5
Solar Array Capacity (Pmax /kWp)：74.97(75~85)
Type of Solar Module (W)：595 x126(585~650)
String Inverter (kW)：50x1 Hybrid/100 Off Grid
Bracket (Number of Module per Sheet)：3x42
Lithium Battery Storage(kWh)：229x1(215~258)
Diesel Generator(KVA)(Optional)：13.8x1
Total Unfolded Footprint (L*W*H/m)：104*3.6(6.0)*0.9(2.9)
Occupied Area of Whole System (m²)：370 (104*3.55)
Complete Unfolding Time (mins)：150
Complete Folding Time (mins)：100
Installation Persons：4

Total Weight (Tons)：27
Solar Array Capacity (Pmax /kWp)：141.12(140~160)
Type of Solar Module (W)：480x294(480~520)
String Inverter (kW)：50x2 Hybrid/100 Off Grid
Bracket (Number of Module per Sheet)：(4+3)x42
Lithium Battery Storage(kWh)：229x1(215~258)
Diesel Generator(KVA)(Optional)：13.8x1
Total Unfolded Footprint (L*W*H/m)：89*9.3(12.0)*0.8(2.6)
Occupied Area of Whole System (m²)：824(89*9.25)
Complete Unfolding Time (mins)：180
Complete Folding Time (mins)：120
Installation Persons：4

Total Weight (Tons)：32.5
Solar Array Capacity (Pmax /kWp)：149.94(150~170)
Type of Solar Module (W)：595x252(585~650)
String Inverter (kW)：50x2 Hybrid/200 Off Grid
Bracket (Number of Module per Sheet)：(3+3)x42
Lithium Battery Storage(kWh)：229x1(215~258)
Diesel Generator(KVA)(Optional)：13.8x1
Total Unfolded Footprint (L*W*H/m)：104*8(12.0)*0.9(2.9)
Occupied Area of Whole System (m²)：832(104*8)
Complete Unfolding Time (mins)：220
Complete Folding Time (mins)：150
Installation Persons：6
